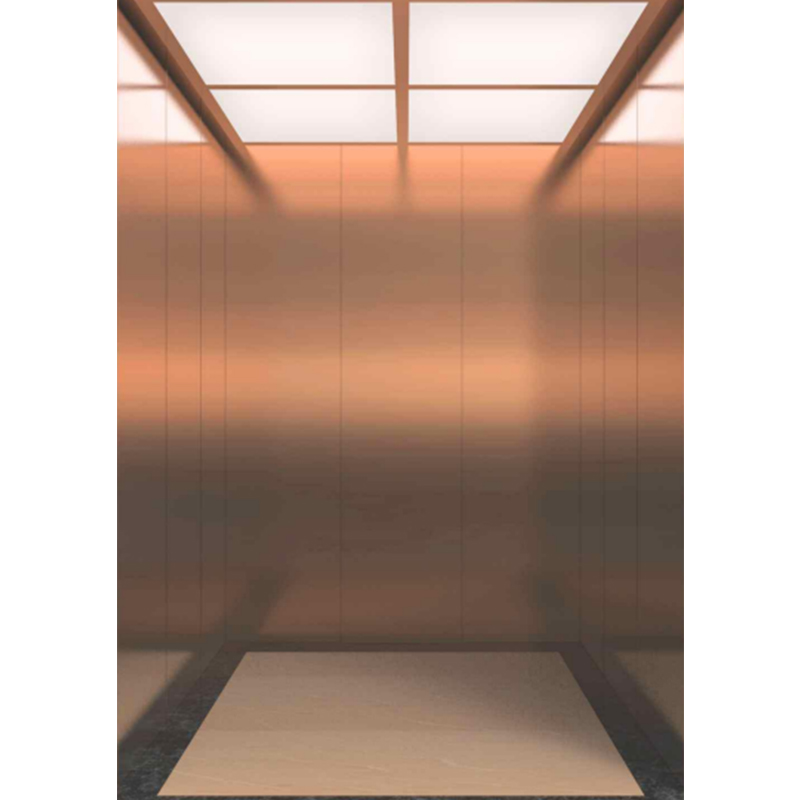

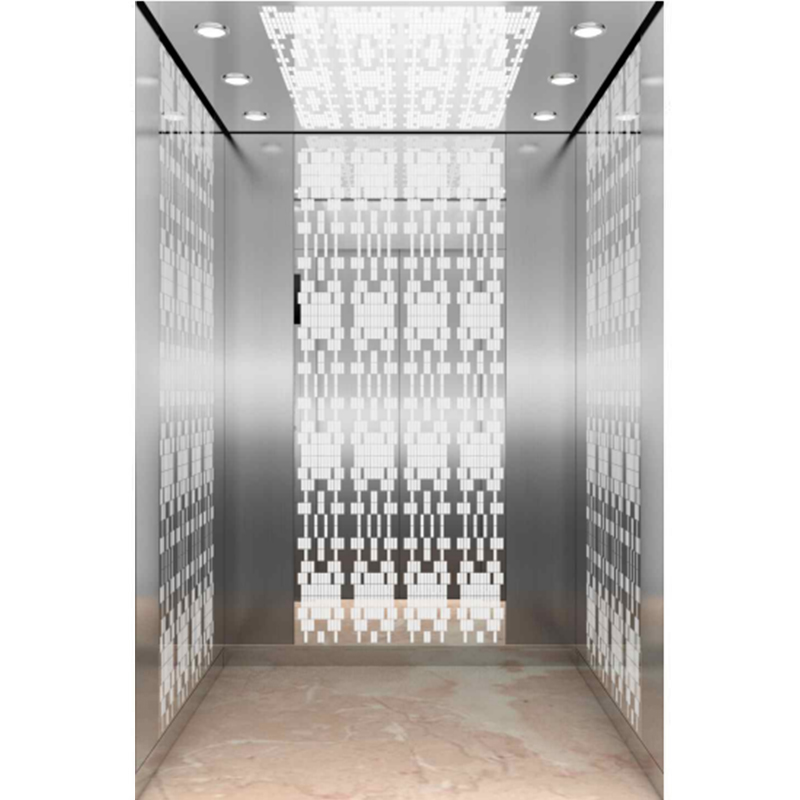

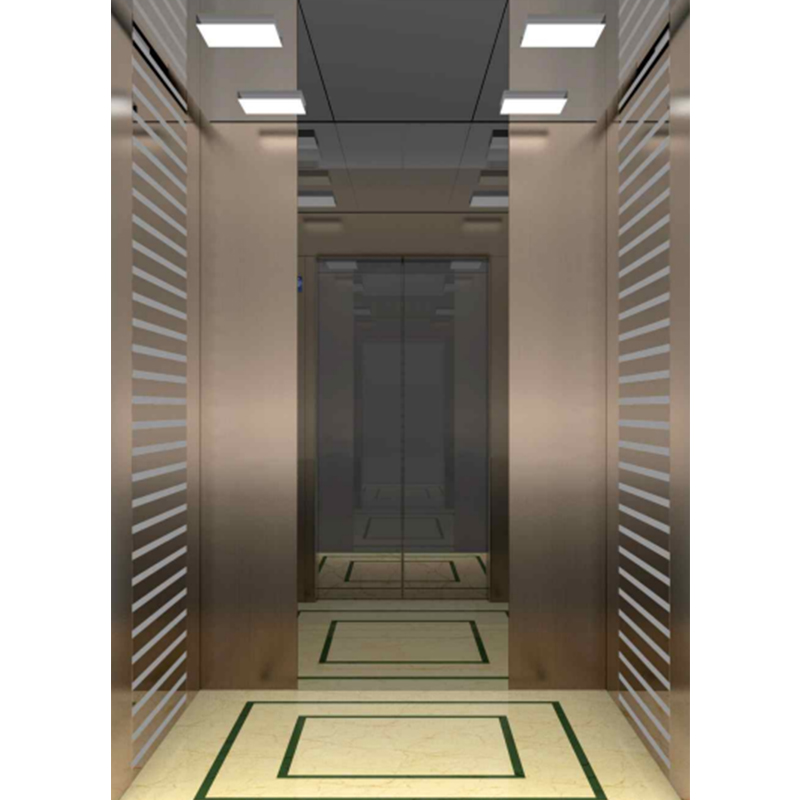

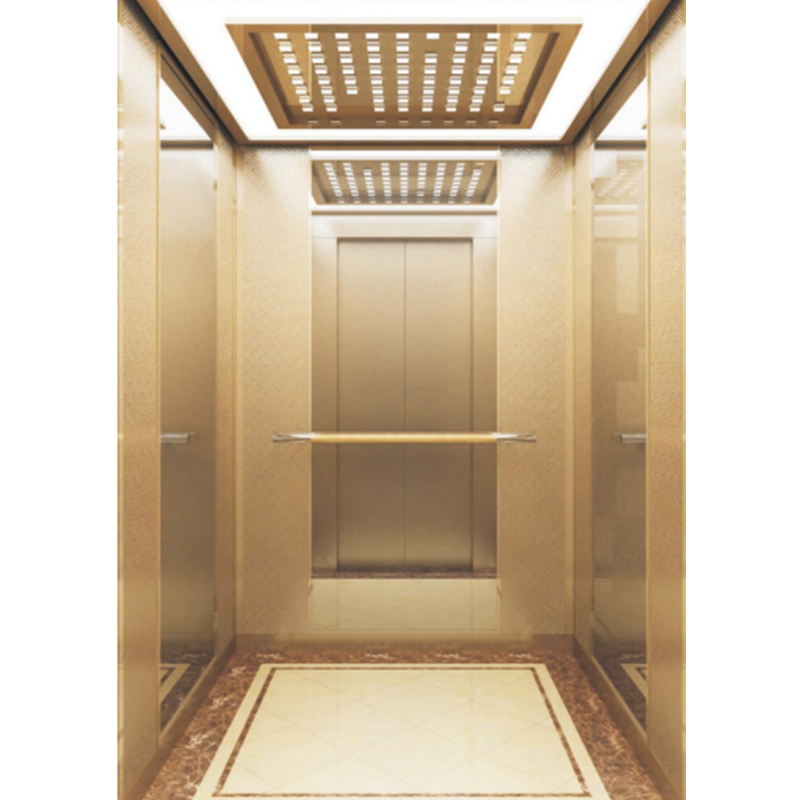

METIS-HS High Speed Elevator

Name: METIS-HS
Brand: IFE ELEVATORS CO., LTD.

Intuitive elevator distribution guidance reduces passenger waiting time and elevator running time.The linkage of the gate machine, card swipe and the DCS improves the safety and simplify the operation.

Features Of METIS-HS High Speed Elevator

Multiple Security Technology.
Comfortable Ride Experience.
Power Regeneration Device.
DCS and Card Entrance Guard Gate Machine Linkage.

Specification Of METIS-HS High Speed Elevator

NO.	Specification				800（10P）			1050（14P）			1150（15P）
1	Capacity (kg)				800			1050			1150
2	Speed (m/s)				3	3.5	4	3	3.5	4	3	3.5	4
3	Lifting height(m)				≤200
4	Machine room height (mm)				2500
5	Rear weight	Reduced stroke	1	Hoistway size (mm) (net width * net depth)	2000*2100			2200*2300			2300*2300
				Top Floor Height(mm)	5300	5300	5700	5300	5300	5700	5300	5300	5700
				Pit depth(mm)	3000	3000	3200	3000	3000	3200	3000	3000	3200
				Car Specifications (mm) (net width * net depth * full height)	140013502500			160015002500			170015002500
				Door opening size (mm) (net width * net height)	800*2100			900*2100			1000*2100
6	Side-to-side	Reduced stroke	1	Hoistway size (mm) (net width * net depth)	/			2300*2400			2300*2500
				Top Floor Height(mm)				5300	5300	5700	5300	5300	5700
				Pit depth(mm)				3400	3400	3650	3400	3400	3650
				Car Specifications (mm) (net width * net depth * full height)				120020002500			120021002500
				Door opening size (mm) (net width * net height)				900*2100			900*2100
			2	Hoistway size (mm) (net width * net depth)	/			/			/
				Top Floor Height(mm)
				Pit depth(mm)
				Car Specifications (mm) (net width * net depth * full height)
				Door opening size (mm) (net width * net height)

NO.	Specification				1350（18P）			1600（21P）			2000（26P）
1	Capacity (kg)				1350			1600			2000
2	Speed (m/s)				3	3.5	4	3	3.5	4	3	3.5	4
9	Lifting height(m)				≤200
10	Machine room height (mm)				≥2600
11	Rear weight	Reduced stroke	1	Hoistway size (mm) (net width * net depth)	2600*2300			2600*2600			2500*2850
				Top Floor Height(mm)	5300	5300	5700	5300	5300	5700	5300	5300	5700
				Pit depth(mm)	3000	3000	3200	3000	3000	3200	3000	3000	3200
				Car Specifications (mm) (net width * net depth * full height)	195015002500			195017502500			195020502500
				Door opening size (mm) (net width * net height)	1100*2100			1100*2100			1100*2100
12	Side-to-side	Reduced stroke	1	Hoistway size (mm) (net width * net depth)	2450*2400			2400*2800			2700*2800
				Top Floor Height(mm)	5300	5300	5700	5300	5300	5700	5400	5400	5600
				Pit depth(mm)	3400	3400	3650	3400	3400	3650	3400	3400	3650
				Car Specifications (mm) (net width * net depth * full height)	150020002500			140024002500			170024002500
				Door opening size (mm) (net width * net height)	900*2100			900*2100			1100*2100
			2	Hoistway size (mm) (net width * net depth)	2300*2800			2650*2400
				Top Floor Height(mm)	5300	5300	5700	5300	5300	5700
				Pit depth(mm)	3400	3400	3650	3400	3400	3650
				Car Specifications (mm) (net width * net depth * full height)	120024002500			170020002500
				Door opening size (mm) (net width * net height)	900*2100			1000*2100

NO.	Specification	1350（18P）		1600（21P）		2000（26P）
1	Capacity (kg)	1350		1600		2000
2	Speed (m/s)	5	6	5	6	5	6
3	Lifting height(m)	≤300
4	Machine room height (mm)	≥2600
5	Hoistway size (mm) (net width * net depth)	2600*2450		2600*2600		2500*2850
	Top Floor Height(mm)	6900	6900	6900	6900	6900	6900
	Pit depth(mm)	4400	4800	4400	4800	4400	4800
	Car Specifications (mm) (net width * net depth * full height)	195015002800		195017502800		195020502800
	Door opening size (mm) (net width * net height)	1100*2100
Note: The standard equipment adopts de-stroke technology, when the de-stroke technology is not used, the height of the top layer and the depth of the pit need to be increased.
