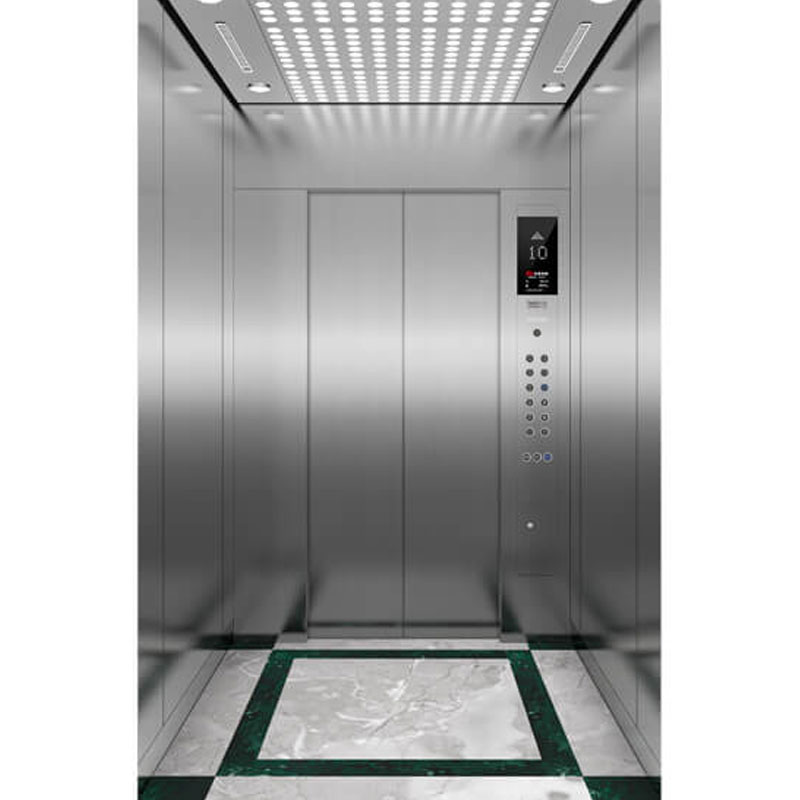

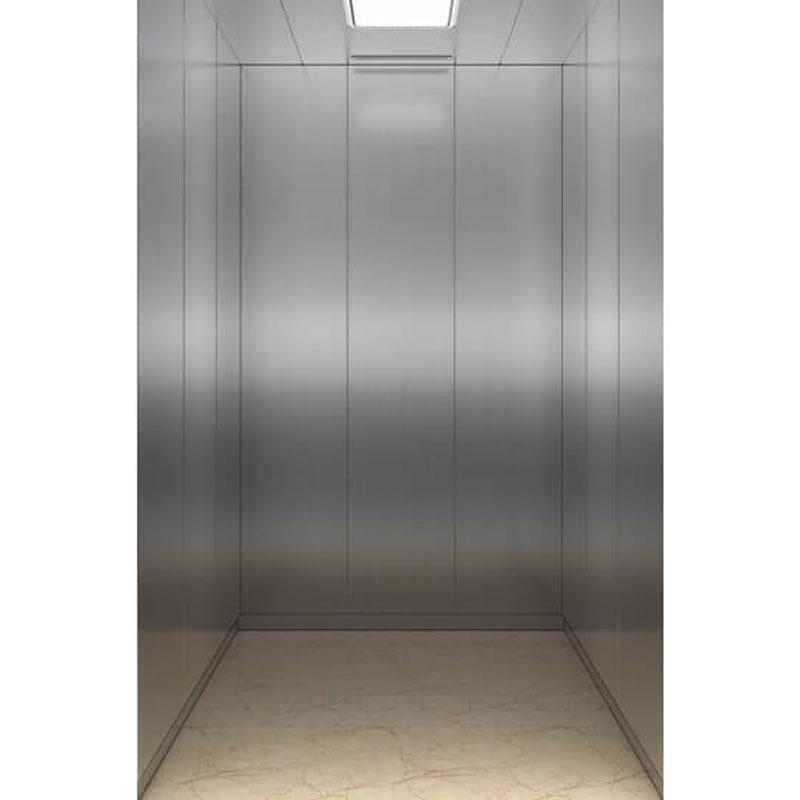

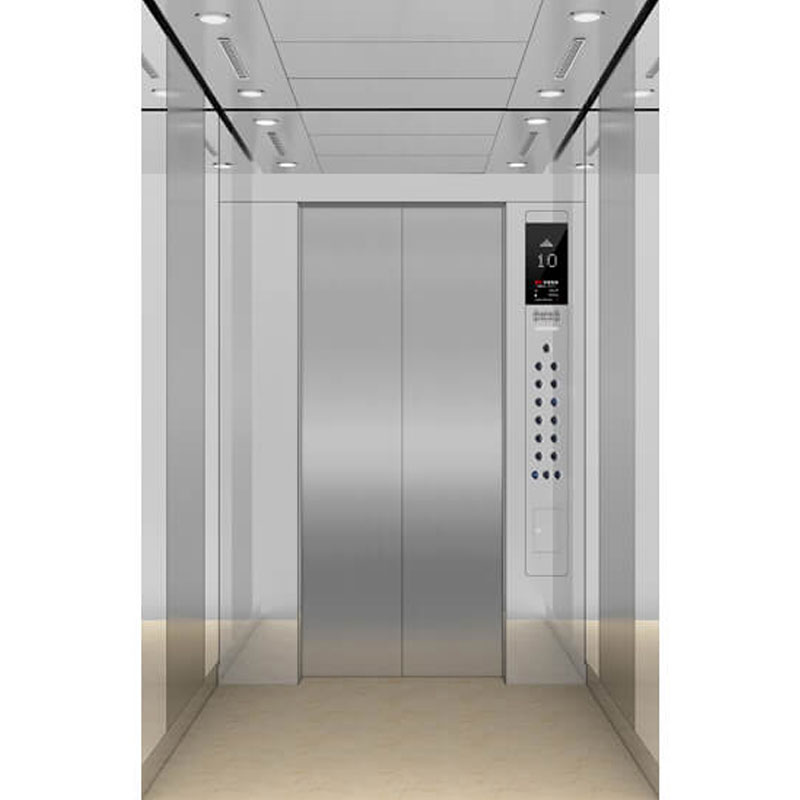

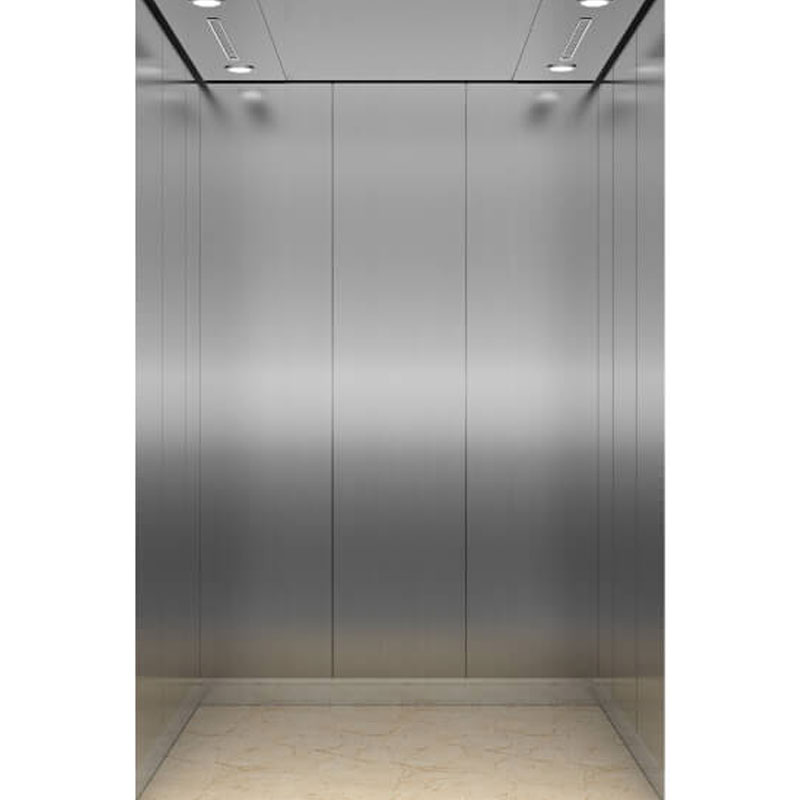

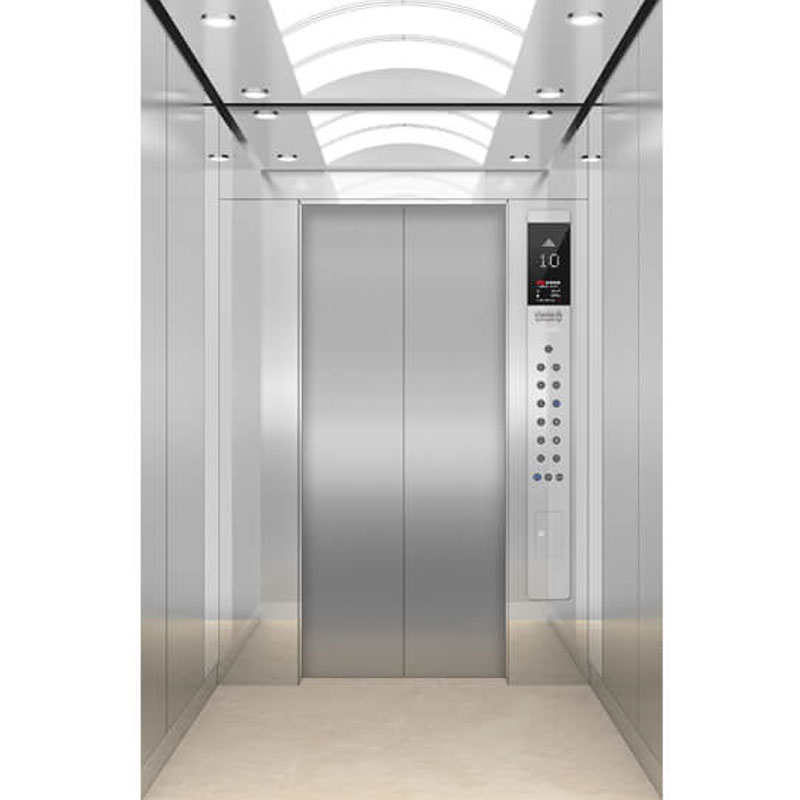

METIS-CR Passenger Elevators

Name: METIS-CR
Brand: IFE ELEVATORS CO., LTD.

Metis-CR1 acquired VDI 4707 PART 1 highest grade A certification certified by the German TüV energy-efficiency testing so winning a large number of high-standard customers and industry appreciation in the Chinese market.

Feature Of METIS-CR Passenger Elevators

Human technology for safe arrival.
Comfortable experience with low energy consumption.
Optional configuration.

Specification Of METIS-CR Passenger Elevators

NO.	Specification		545(8P)			615(9P)			685(10P)			750(11P)			820(12P)				885(13P)					955(14P)					1025(15P)					1160(17人/P)					1295(19人/P)
1	Capacity (kg)		545			615			685			750			820				885					955					1025					1160					1295
2	Speed (m/s)		1	1.5	1.75	1	1.5	1.75	1	1.5	1.75	1	1.5	1.75	1	1.5	1.75	2	1	1.5	1.75	2	2.5	1	1.5	1.75	2	2.5	1.5	1.75	1	1.5	1.75	1	1.5	1.75	2	2.5	1	1.5	1.75	2	2.5
3	Operation System		full collective selection operation
4	Driving System		VVVF
5	Door Operator System		VVVF
6	Traction Machine		Permanent Magnet Synchronous Gearless type
7	Control System		CTRL71
8	Parallel Elevators		2 units
9	Group Control Elevators		3-8 units
10	Wide Car	Car Dimension mm width*depth	1400*1050			1350*1200			1400*1250			1400*1350			1500*1350				1500*1400					-					1600*1550					1800*1500					1800*1650

		Shaft Size mm W*H	2100*1700			2050*1850			2100*1900			2100*2000			2200*2000				2200*2050					-					2300*2200					2500*2200					2600*2350

11	Deep Car	Car Dimension mm width*depth	-			-			-			1150*1650			1250*1650				1300*1650					1100*2100					1200*2100					1300*2100					1400*2150

		Shaft Size mm W*H	-			-			-			2050*2050			2100*2050				2150*2050					2000*2500					2250*2500					2400*2500					2600*2550
